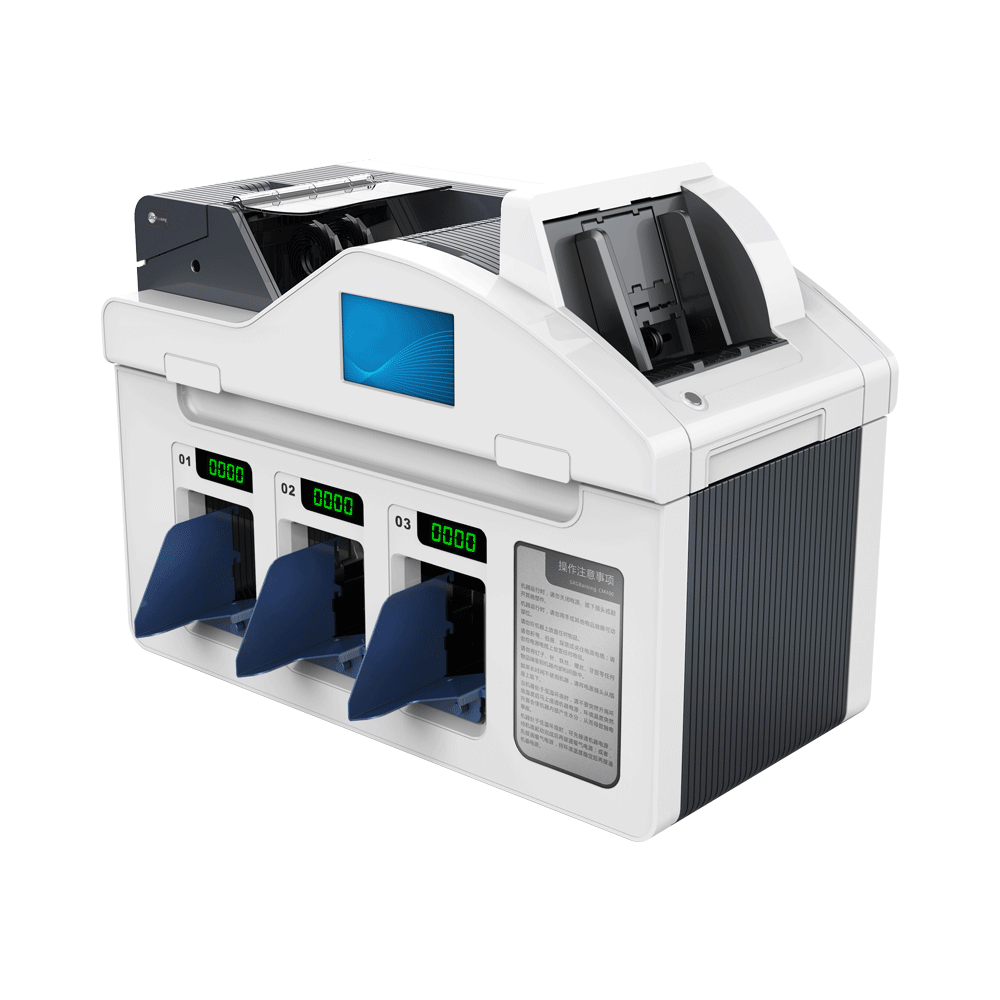

CM300: Banknote Sorting Machine


Based on GRGBanking’s 20 years experience in currency recognition and cash processing industry, CM300 is a 3 stackers sorting machine, with high processing speed of 720 notes/minute for sorting and 1,000 notes/minute for counting, which is able to provide reliable and efficient cash sorting service in cash center.






Improved Greatness!


With successful experience of launching CM400, GRGBanking has further developed the state-of-the-art cash sorting and cassette auto-loading machine as well as 6 and 8 stackers’ sorting machine. Based on the main cash sorting module of CM400, designed for large volume cash processing, the CM series is able to improve the cash processing efficiency and productivity in cash center with reliable performance.




Precise Cash Processing

Diversified banknote sorting schemes, enable more convenient, flexible and efficient cash processing management. Once the sorting criteria are set, the banknotes can be sorted accordingly.



FITNESS
SORTING




DENOMINATION
SORTING




ORIENTATION
SORTING




VERSION
SORTING




CUSTOMIZED
SORTING




VALUE
COUNTING

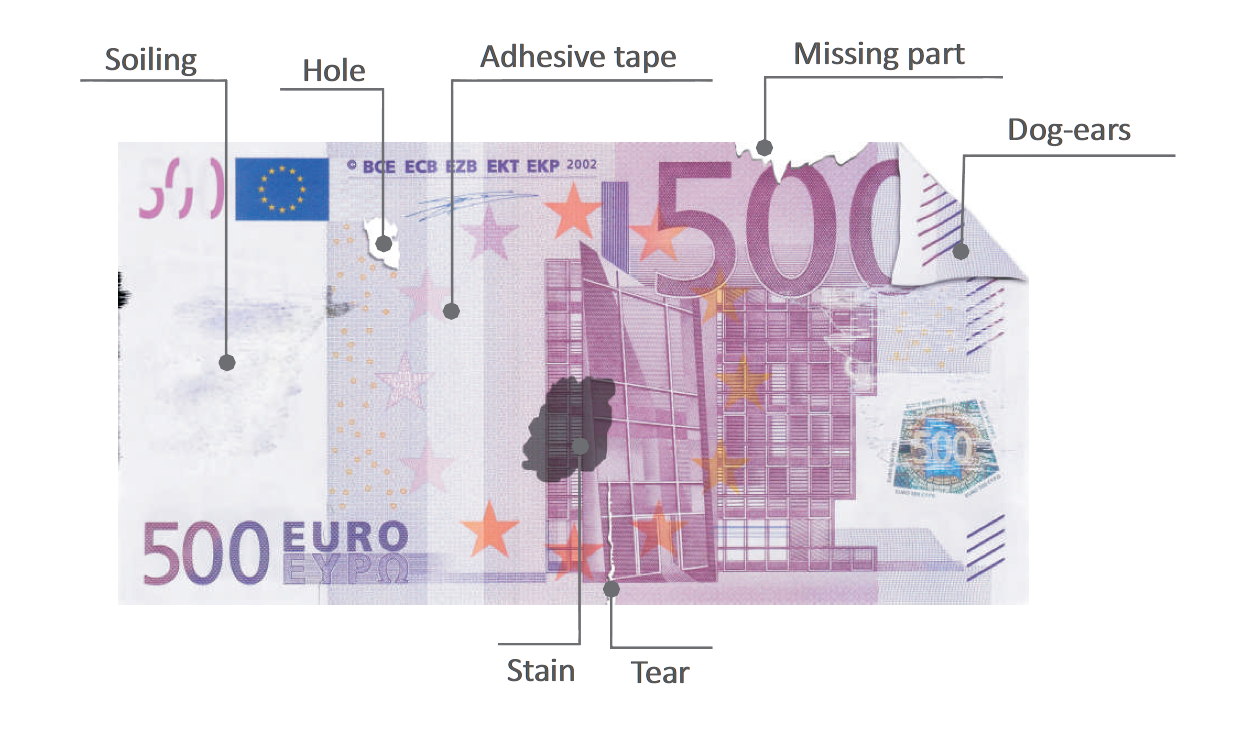

Professional and comprehensive banknote detection technology is able to detect soiled, stained, taped, torn and dog-eared notes. Customized currency recognition algorithm divides the banknote conditions into 10 different levels, which offers accurate criteria for banknote sorting.



Optional automatic serial number capturing at a speed of 12 notes/second, the serial number can be recorded and the both sides’ image of each note can be kept in an optional image recorder. Users can check the banknote’s serial number and image information.

Innovative anti-static design effectively eliminates the static electricity on the banknote and therefore enables our unit to handle polymer note.



Optimum User Experience

  • 7" LCD touch screen with clear operation prompts and user guides, improve the user experience.
  • With non-stop operation hopper user can keep feeding the notes.
  • The embedded multi-language operating system ensures the scalability of CM800 for a better cash processing and management solution.
  • High brightness digital display to indicate the number of banknote in the stacker.
  • Non-stop operating stacker is able to automatically push out thesorted notes, release them on the note collection tray and carry on its operation without a stop.
  • With USB RS-232 and LAN interface, CM800 is able to connect with external LCD, printer and PC for sorting report management.


Easy Maintenance

  • Supports quick and easy access to the banknote transport to remove jammed notes and conduct cleaning.
  • The dust generated during operation will be automatically collected into dust board to increase the uptime of the machine.
  • Supports remote upgrade and diagnosis.


Sorting Report Management

  • Customer can check the sorting report on the machine, such as the cash processing amount, denomination and fitness information, for rejected note, the machine is able to record and display the reason of rejecting.
  • With instant sorting report printing function, a receipt can be printed for each sorting movement.
  • The sorting report can be exported to external device such as USB disk, PC, as well as any other data storage device, for future analysis.




Security Feature

CM800 is configurable with GRG GSECOne security solution, which is a comprehensive and specific software for terminal security, to protect the system and files from software attack.
